Products
Zahntium
- Platform Switching: Prevents cortical bone compression
- Micro Thread: Better cortical plate contact
- Active Thread: Primary stability in soft bone
- 3D Active Surface: Hydrophilic SLA, fast osseointegration
- Antirotational Sulcus: Locks abutment, prevents rotation
- Curved Apex: Protects sinus membrane

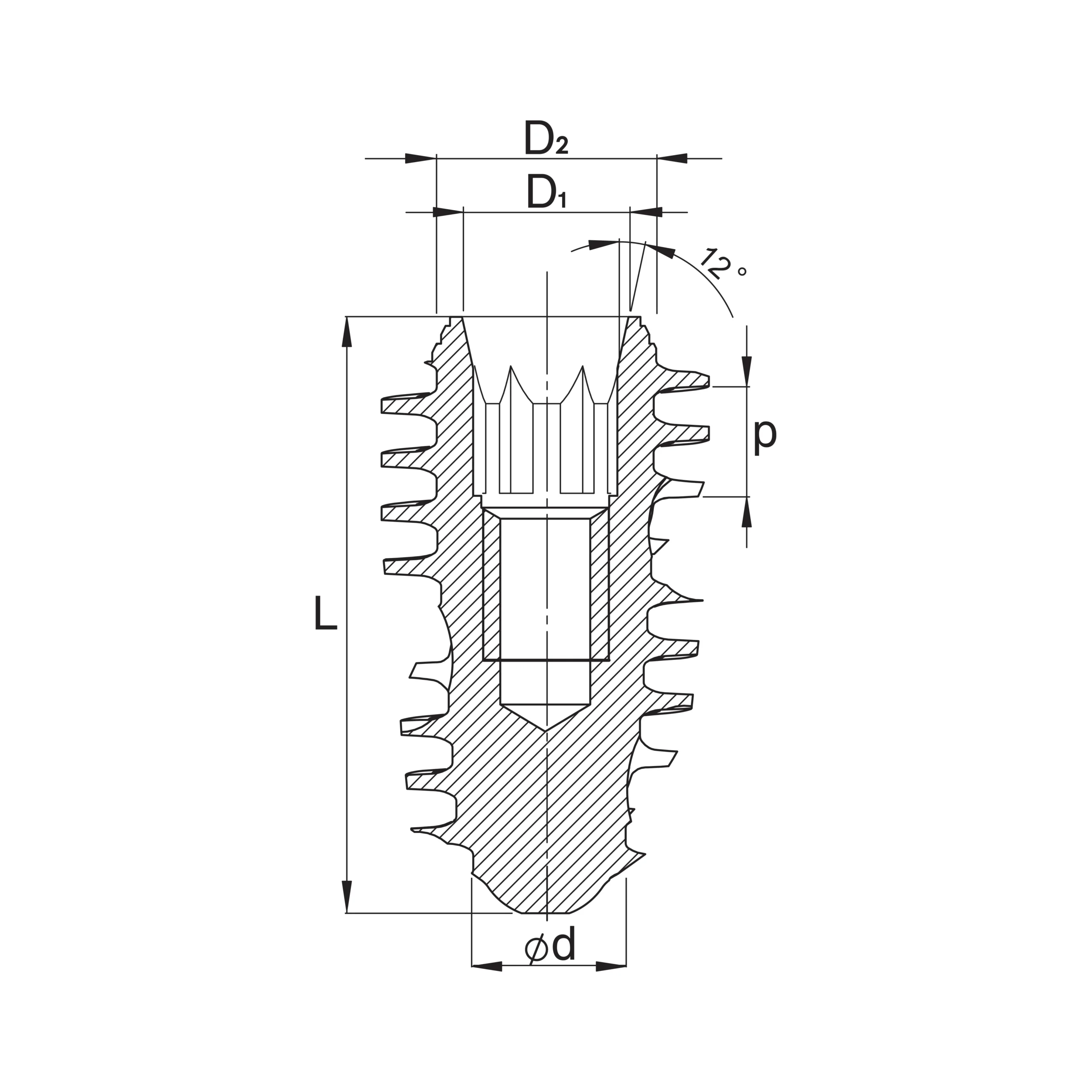

Zahntium Plus
- Platform Switching: Reduces crestal bone stress
- Inverted Cone Neck: Preserves cortical bone height
- Tapered Body: Matches DLC drill exactly, instant stability
- Active Thread: Reliable grip in soft/compromised bone
- Antirotational Sulcus: No unscrewing under load
- Curved Apex: Safe near Schneider's membrane

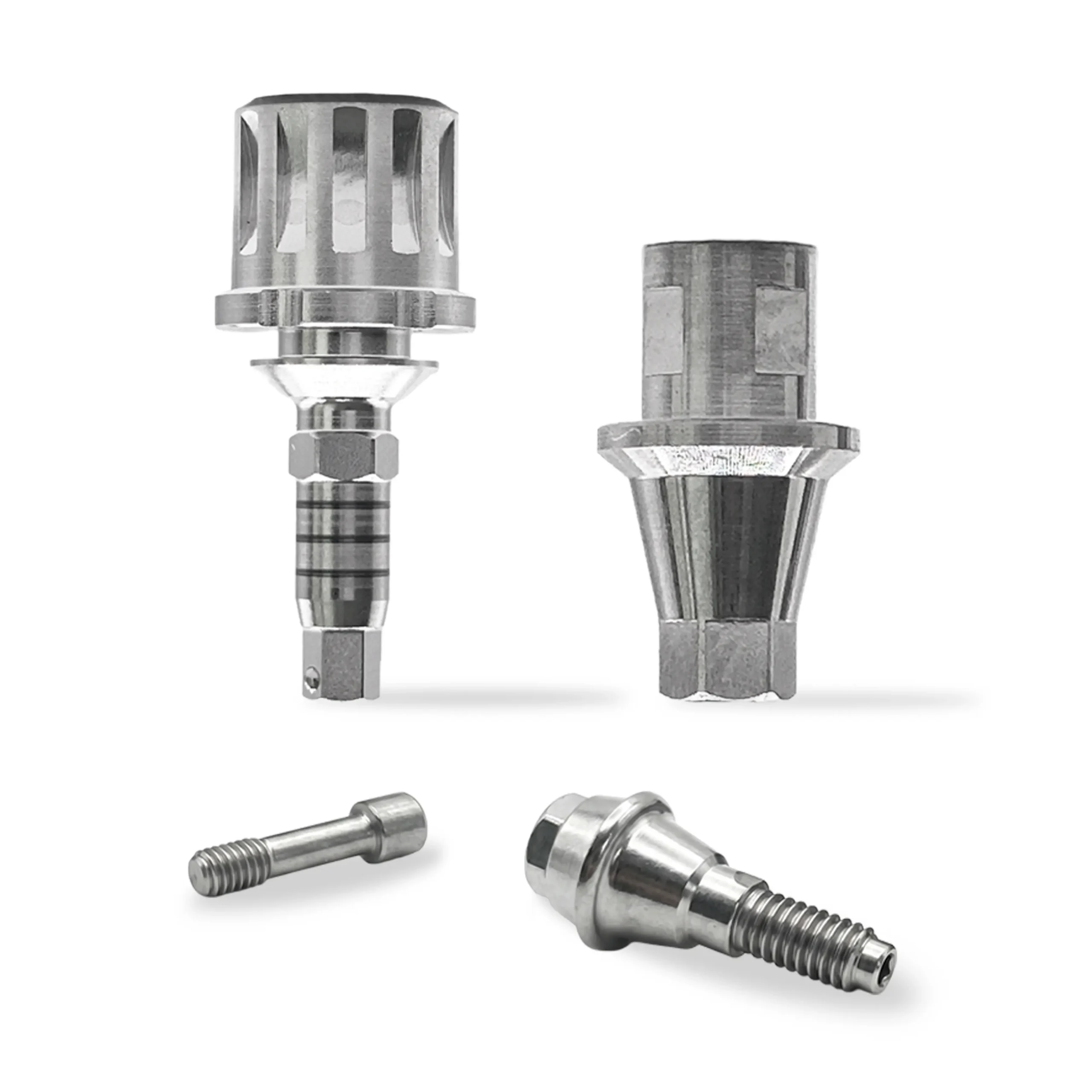

Accessories
- Cover Screw: Included with every implant, metric M1.60
- Healing Caps: Titanium & PEEK, forms gingival line and papilla
- Abutments: Straight, angular 15°/25°, wide titanium & zirconia
- Multi-Units: Angular 17°/30°/45° for non-parallel implants
- Transfers & Analogs: Open/closed tray, digital analogs for CAD/CAM
- Scan Bodies: PEEK scan body & scan abutments for digital workflow
Surface Treatment
- 3D Active SLA: Multi-layered microporous hydrophilic surface
- Oxide Layer: 10-12 microns thick, imbued with micro-pores
- Hydroxyapatite: Titanium oxide enriched with calcium hydroxyapatite
- Bone Growth: Stimulates active bone ingrowth between micro-pores
- Sterility: Double sterile packing, fully validated sterilisation
Surgical Kit 1

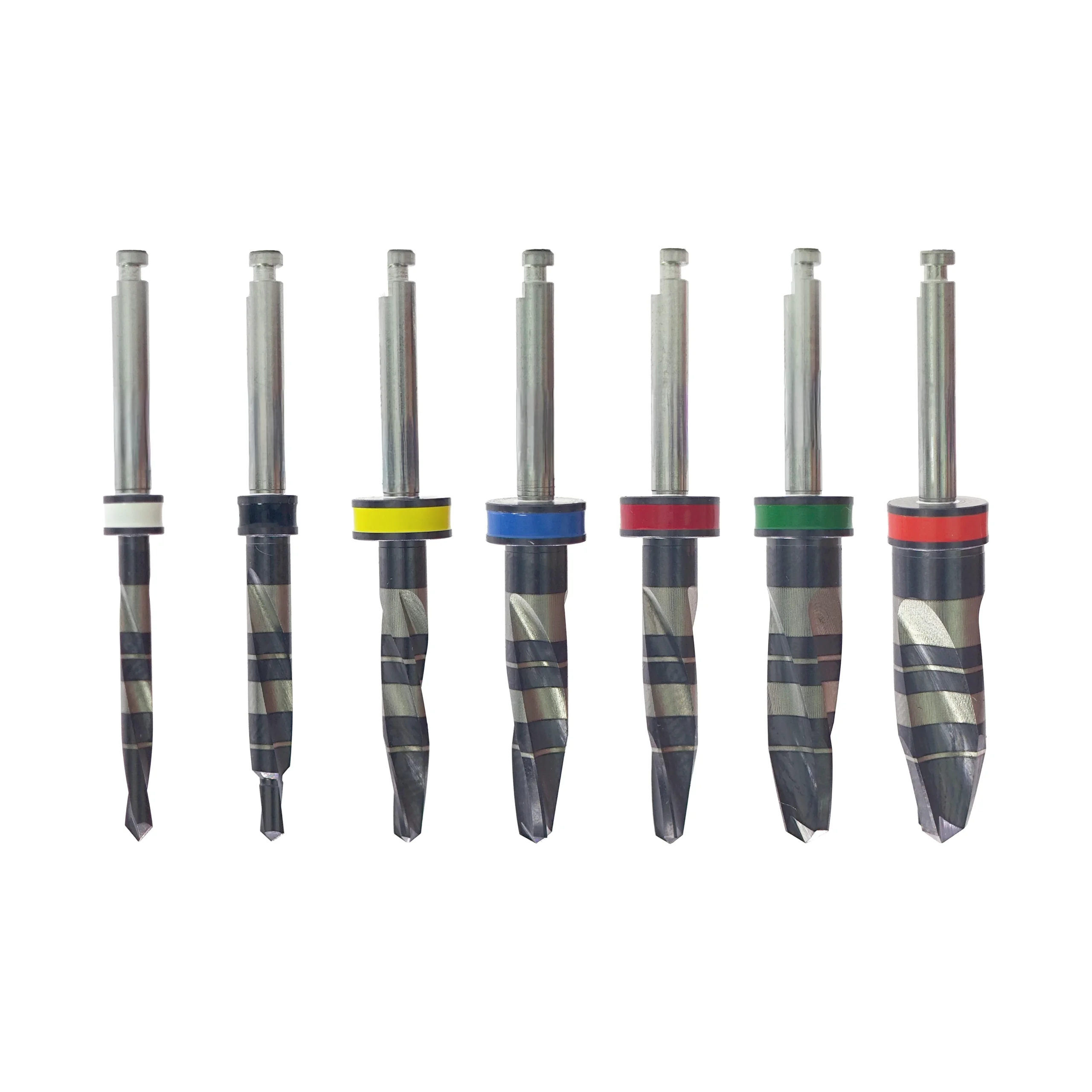

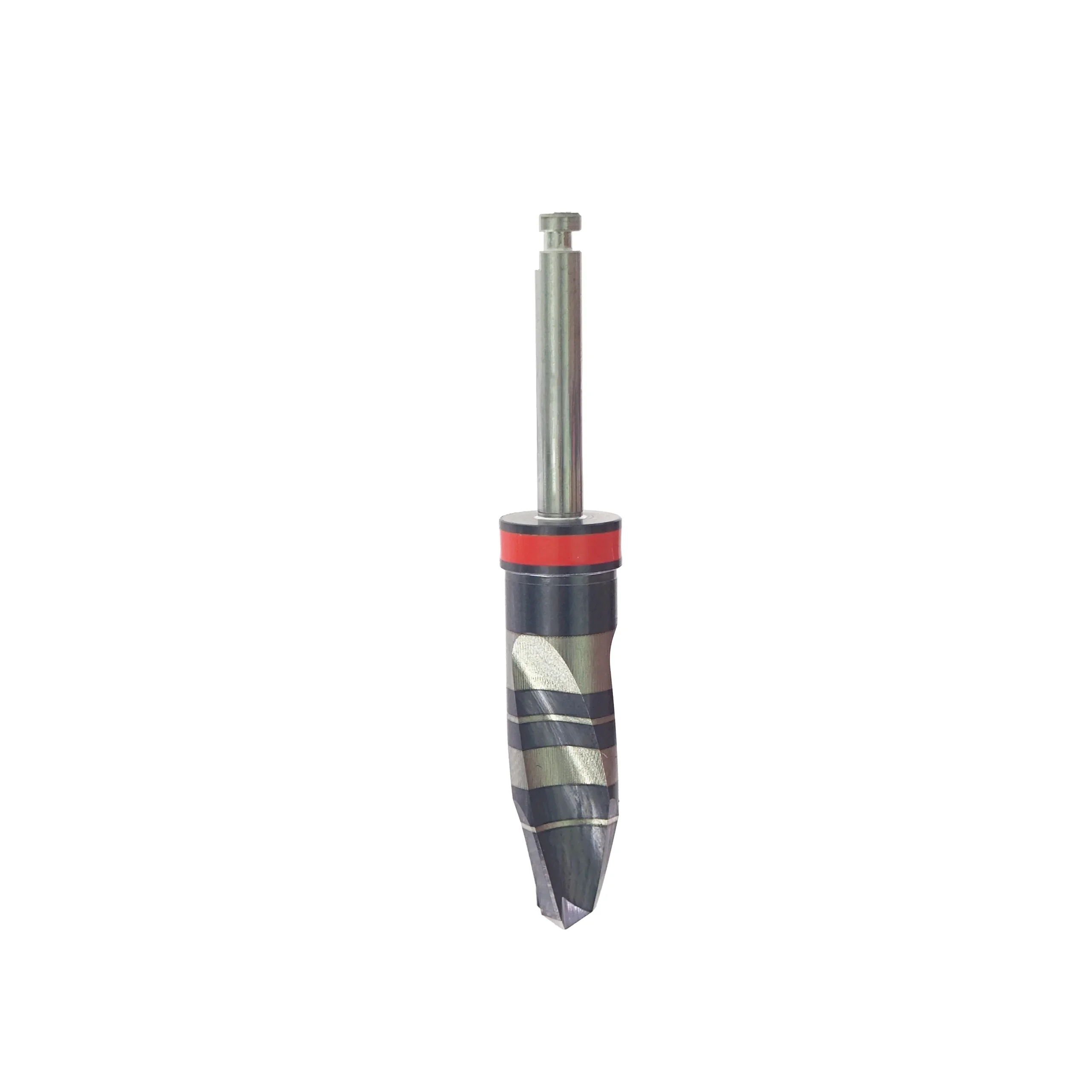

- DLC Drills: Cylindrical & tapered finishing, diameters 1.5-6.0mm
- Countersinks: 5 Sizes AIC32 to AIC6 for platform preparation
- Stoppers: Depth control for 6/8/10/11.5/13mm lengths
- Implant Drivers: Short & long, handpiece & ratchet compatible
- Drill Extension: ZTD-E for deep access sites
- Torque Ratchet: Manual torque control, included in kit
Surgical Kit 2
- DLC Drills: Full diameter range ZGD 1.9-4.8, lengths 6.75-16mm
- Mounter Platforms: 4 offset types (+/+2/+4/+6), 10 system types
- Guide Sleeves: Compatible with Straumann, Nobel, Megagen, Osstem
- Fixation Pins & Tissue Punch: For guided surgery protocols
- Bone Profile Drill: ZGBM 4.8 for crestal bone profiling
- Universal Screwdriver + Implant Driver: Full prosthetic placement tools
Implant
Implant
implant has a platform with an inner cone and a hexagon for positioning. This type of platform allows creating a conical connection with suprastructures. This connection is more stable and airtight. 3.25 mm diameter implants are installed in front and lateral parts (canine teeth, incisors, premolar teeth).
- Inner cone platform with hexagonal positioning.
- Stable and secure conical connection.
- Improved airtight sealing.
- 3.25 mm diameter implant.
- Suitable for canines, incisors, and premolars.
- Designed for front and lateral tooth replacement.
Accessories
"Innovative Dental Accessories: Revolutionizing Oral Care" - Dive into the world of cutting-edge dental accessories that are revolutionizing the way we take care of our teeth. this blog post will showcase the latest innovations in oral care. By highlighting the benefits and features of these accessories, you can help your audience stay up-to-date with the latest trends and make informed decisions about their dental health.
Surface Treatment
3D Active surface represents the latest generation of dental implant surface treatment technology. This surface is active and hydrophilic; it has distinct multi-layered microporous structure. The thickness of oxide layer of the implant surface reaches 10-12 microns. The entire thickness of the oxide layer is imbued with micropores that combine with each other and create a multi-layered surface. This way, the bone tissue grows deeper both in and between micro pores. Thereby, implant surface area is significantly increased and, thus the contact between bone tissue and implant surface is strengthened. Titanium oxide film is enriched with calcium hydroxyapatite, and the implant surface is contaminant-free. It has prominent hydrophilic characteristics (absorption).
Surgical Kit
DRILL - COUNTERSINKS - STOPPERS - IMPLANT DRIVERS
